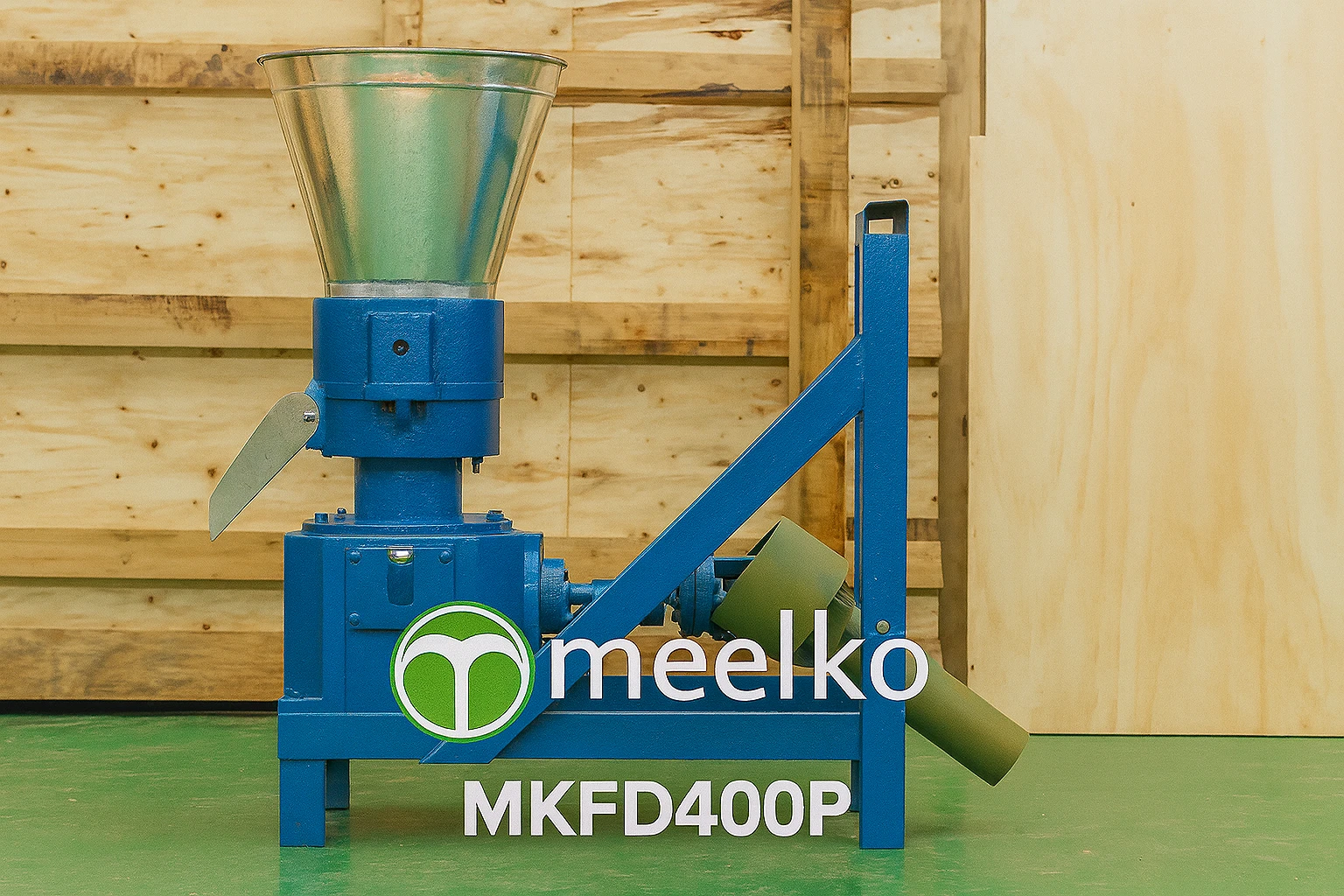

PTO Wood Pellet Machine 400 mm – MKFD400P (Biomass Heating Pellets)
Details:
MKFD400P PTO Wood Pellet Machine 400mm for Biomass Heating Pellets
The MKFD400P pellet machine from Meelko is the highest capacity unit in the PTO-driven pellet production line. Equipped with a 400 millimeter diameter flat die, this pelletizer is designed for forestry producers, sawmills, contractors, and rural operations that require large volumes of wood pellets per day without relying on electrical power supply. Its tractor-driven PTO system makes it the ideal solution for remote locations where access to the electrical grid is not available or economically feasible.
PTO Power Take-Off Drive System
The PTO drive system of the MKFD400P allows connecting the pellet machine directly to the power take-off shaft of any agricultural or forestry tractor with adequate horsepower rating. This configuration eliminates the need for electric motors, generators, or special electrical installations, significantly reducing the initial investment and infrastructure costs for pellet production. The PTO coupling is designed with a safety mechanism that protects both the pelletizer and the tractor against overloads and sudden starts that could damage mechanical components.
Power transmission from the tractor PTO shaft to the pelletizing mechanism is accomplished through a system of high-resistance universal joints and gears that ensures efficient transfer of mechanical energy throughout the drive train. The system is designed to operate with tractors featuring a standard power take-off of 540 or 1000 revolutions per minute depending on the model configuration, with a minimum power requirement that varies according to the type of material being processed and the desired production output level.
400mm Flat Die and Pelletizing Process
The 400 millimeter diameter flat die is the central component of the MKFD400P and determines both the production capacity and the quality of pellets manufactured during each session. Manufactured from SAE 4140 steel with thermal tempering treatment, the die offers exceptional wear resistance and a long service life under intensive working conditions in demanding environments. The extrusion holes are available in different diameters that allow producing pellets of various sizes according to target market specifications and end-user requirements.
The pelletizing process is performed by compression rollers that press the material against the die surface, forcing it through the extrusion holes where it acquires its characteristic cylindrical shape. The pressure and temperature generated during this process activate the natural lignin present in wood which acts as a natural binder, producing compact and resistant pellets without the need for chemical additives or artificial binding agents. An adjustable blade system cuts the pellets to the desired length as they emerge from the die surface during continuous production.
Raw Materials and Applications
The MKFD400P can process a wide variety of biomass raw materials for the production of fuel pellets and other granulated products for commercial distribution. Among the most common raw materials are wood sawdust, planer shavings, forestry pruning residues, crushed bark, walnut shells, crop residues such as straw and stubble, and other lignocellulosic materials with adequate moisture content for the pelletizing process to achieve optimal results.
Wood pellets produced with the MKFD400P are widely used as fuel in biomass stoves and boilers for residential and industrial heating applications worldwide. They also find application as animal bedding material in stables and poultry farms, as substrate for composting operations, and as raw material for electricity generation in dedicated biomass power plants. The versatility of the machine allows producers to diversify their product offerings and access different market segments with a single equipment investment.
Advantages of Electricity-Free Operation
One of the most significant advantages of the MKFD400P is its ability to operate completely independent of the electrical grid infrastructure. This makes it ideal for forestry operations located in remote areas where power lines are not available or where the cost of connection would be prohibitively expensive for the scale of operation. Producers can install the pellet machine directly in the forest or at the rural sawmill, processing wood residues at the same location where they are generated and eliminating raw material transportation costs entirely.
The mobility provided by the PTO drive allows relocating the pellet machine between different work sites according to production needs throughout the year. A single unit can serve multiple locations during the annual cycle, maximizing its utilization rate and the return on investment for the owner. This flexibility is particularly valuable for forestry contractors who work on different properties and need a pellet production solution that can accompany them wherever their operations require throughout each season.
Maintenance and Technical Support
Maintenance of the MKFD400P is straightforward and can be performed in the field with basic tools readily available at any work site. The main tasks include periodic lubrication of bearings, verification of die and roller wear patterns, adjustment of transmission component tension, and general cleaning of the equipment after each work session. Meelko provides a complete operation and maintenance manual with each unit and offers specialized technical support to resolve any inquiries related to optimal pelletizer operation.
Meelko maintains a permanent inventory of original spare parts including dies, compression rollers, cutting blades, and transmission components that guarantee immediate availability of replacement pieces whenever they are needed for scheduled or unscheduled maintenance. The company also offers technical consulting for selecting the most suitable raw material, optimizing process parameters for maximum output, and resolving common problems that may arise during daily equipment operation under field conditions.
Technical Specifications
Applications:
This product is ideal for a wide range of industrial applications, including:
• Material processing
• Industrial production
• Manufacturing operations
• Automation systems
• Construction projects
Warranty and Support
All our products include complete warranty and specialized technical support. Our team is available to help you with any consultation or maintenance need.
Popular Tags
General Information
| Product Name | : | PTO Wood Pellet Machine 400 mm – MKFD400P (Biomass Heating Pellets) |
| Price | : | $9,718.00 |
| Subcategory | : | Wood pellet mill |
| Category | : | Pellet Mills |
Technical Specifications
| Power | : | 75 kW |
| Capacity | : | 800 kg/hr |
| Dimensions | : | 1600*750*1350 mm |
| Weight | : | 600 kg |
| Humidity | : | 20% |
