PTO Wood Pellet Machine 300 mm – MKFD300P (Biomass Heating Pellets)
Details:

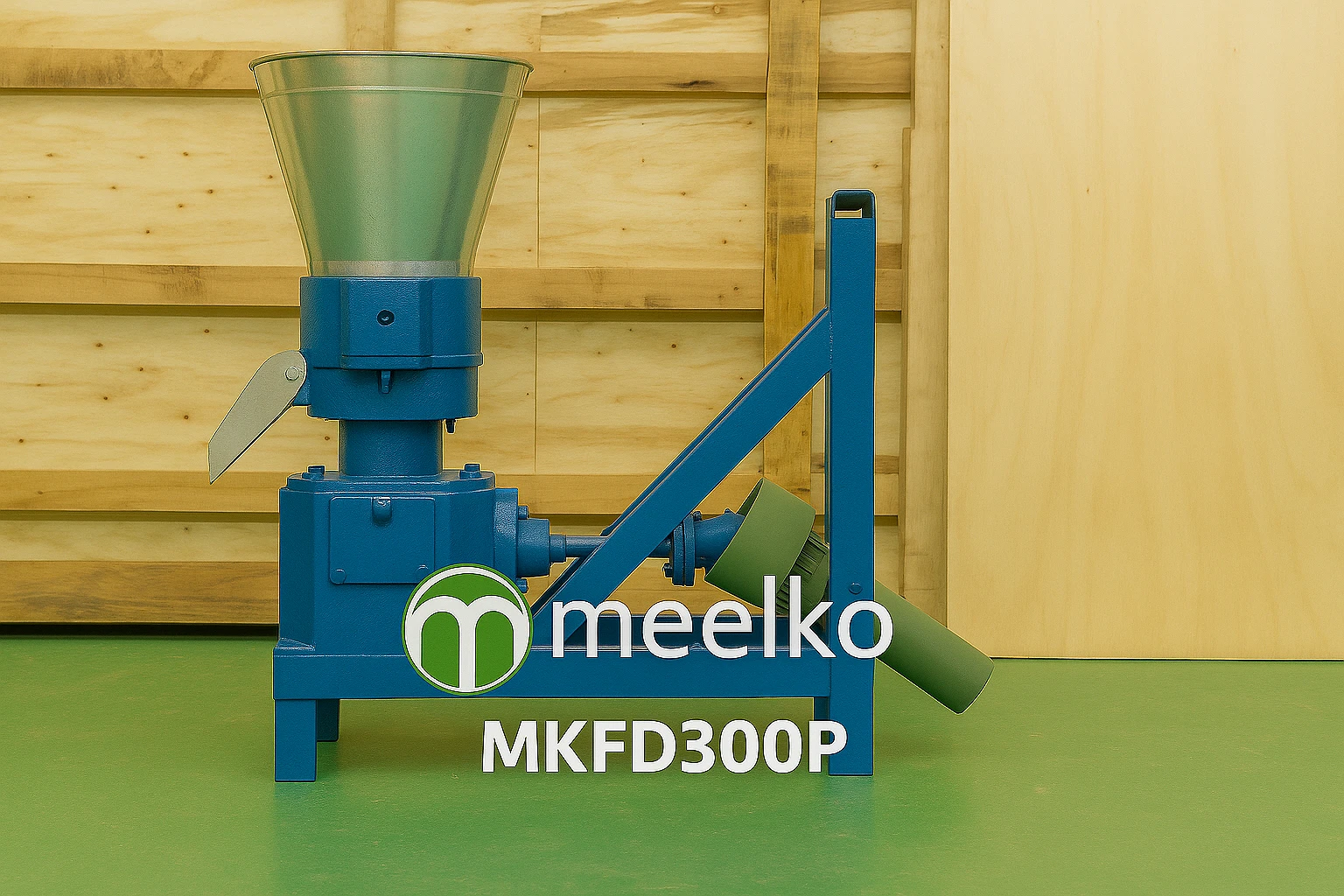

MKFD300P PTO Wood Pellet Machine 300mm for Biomass Heating Pellets
The MKFD300P pellet machine from Meelko is a mid-capacity unit powered by PTO power take-off, designed for forestry producers, rural woodworking shops, small sawmills, and entrepreneurs who wish to manufacture wood pellets autonomously directly at the work site. Equipped with a 300 millimeter diameter flat die, it offers an ideal balance between production capacity and portability, allowing operators to produce high-density pellets without depending on the electrical grid for power supply.
Compact Design and Mid-Range Capacity
The MKFD300P represents the midpoint in the Meelko PTO pelletizer range, offering a production capacity suitable for small and medium-scale operations that do not require the production volumes of larger models but need sustained and reliable output throughout each work session. Its compact design facilitates transport between different work sites, allowing a single operator to move the machine with the help of a tractor and begin producing pellets within minutes after setup is complete.
The weight and dimensions of the equipment have been optimized to facilitate handling without sacrificing the mechanical robustness necessary for industrial-grade operations in demanding environments. The structure is manufactured from high-strength carbon steel with anti-corrosion treatment that protects the equipment against weather elements when used in outdoor forestry settings. The PTO coupling connections are quick-access, allowing connecting and disconnecting the machine from the tractor simply and safely.
PTO Power Take-Off Drive System
The PTO drive of the MKFD300P completely eliminates dependence on electrical power, making this pelletizer the perfect tool for operations located in remote areas without access to the electrical grid infrastructure. The coupling system is designed to work with standard agricultural and forestry tractors equipped with a 540 or 1000 revolutions per minute power take-off according to the equipment configuration selected by the customer at time of purchase.
Power transmission is accomplished through a system of reinforced universal joints and high-resistance gears that guarantee efficient transfer of mechanical energy from the tractor to the pelletizing mechanism. An integrated safety system protects both the pelletizer and the tractor against mechanical overloads, automatically disengaging when forces exceed established limits to prevent damage to the internal components of the equipment and the tractor drive train.
300mm Flat Die
The 300 millimeter flat die manufactured from SAE 4140 steel with thermal tempering treatment is the core of the MKFD300P pelletizer system. The extrusion holes are available in different diameters that allow producing pellets of various sizes according to market requirements and end-user preferences. The quality of the interior finish of each hole ensures the production of pellets with smooth surfaces and uniform compaction that meet commercial standards for density and caloric content in heating applications.
The pelletizing process takes advantage of the natural lignin present in wood as a binder, eliminating the need for chemical additives in the production process. The compression rollers press the material against the die generating the pressure and temperature necessary to activate the lignin and produce compact and resistant pellets suitable for commercial sale. Adjustable cutting blades allow controlling pellet length according to target market preferences, producing uniform pellets that facilitate bagging and commercialization.
Raw Materials and Applications
The MKFD300P can process various biomass raw materials including wood sawdust, planer shavings, forestry pruning residues, crushed bark, walnut shells, cereal straw, and other lignocellulosic materials with adequate moisture content for optimal pelletizing results. The pellets produced are used as fuel in biomass stoves and boilers for residential and industrial heating, as animal bedding material, as composting substrate, and as raw material for renewable energy generation in dedicated facilities.
The versatility of the machine makes it especially attractive for rural entrepreneurs who wish to add value to forestry and agricultural residues available in their region and local area. A producer can transform materials that would otherwise be waste into a marketable product with growing demand in the renewable energy market worldwide. The production cost per ton of pellets is competitive and generates attractive profit margins for well-managed operations with consistent raw material supply.
Maintenance and Technical Support
Maintenance of the MKFD300P is straightforward and can be performed in the field with basic tools readily available at any work location. The main tasks include bearing lubrication, die and roller wear verification, transmission adjustment, and general equipment cleaning after each session. Meelko provides a complete operation and maintenance manual, original spare parts with immediate availability, and specialized technical support to resolve inquiries about optimal equipment operation.
Meelko also offers technical advisory on raw material selection, material preparation before pelletizing, process parameter optimization, and resolution of common problems encountered during daily operation. This comprehensive assistance allows operators to maximize machine productivity and pellet quality from the first day of operation, regardless of their previous experience level in wood pellet and biomass manufacturing processes.
Technical Specifications
Applications:
This product is ideal for a wide range of industrial applications, including:
• Material processing
• Industrial production
• Manufacturing operations
• Automation systems
• Construction projects
Warranty and Support
All our products include complete warranty and specialized technical support. Our team is available to help you with any consultation or maintenance need.
Popular Tags
General Information
| Product Name | : | PTO Wood Pellet Machine 300 mm – MKFD300P (Biomass Heating Pellets) |
| Price | : | $6,550.00 |
| Subcategory | : | Wood pellet mill |
| Category | : | Pellet Mills |
Technical Specifications
| Power | : | 48 kW |
| Capacity | : | 600 kg/hr |
| Dimensions | : | 1300*620*1220 mm |
| Weight | : | 400 kg |
| Humidity | : | 20% |
