PTO Wood Pellet Machine 230 mm – MKFD230P (Biomass Heating Pellets)
Details:

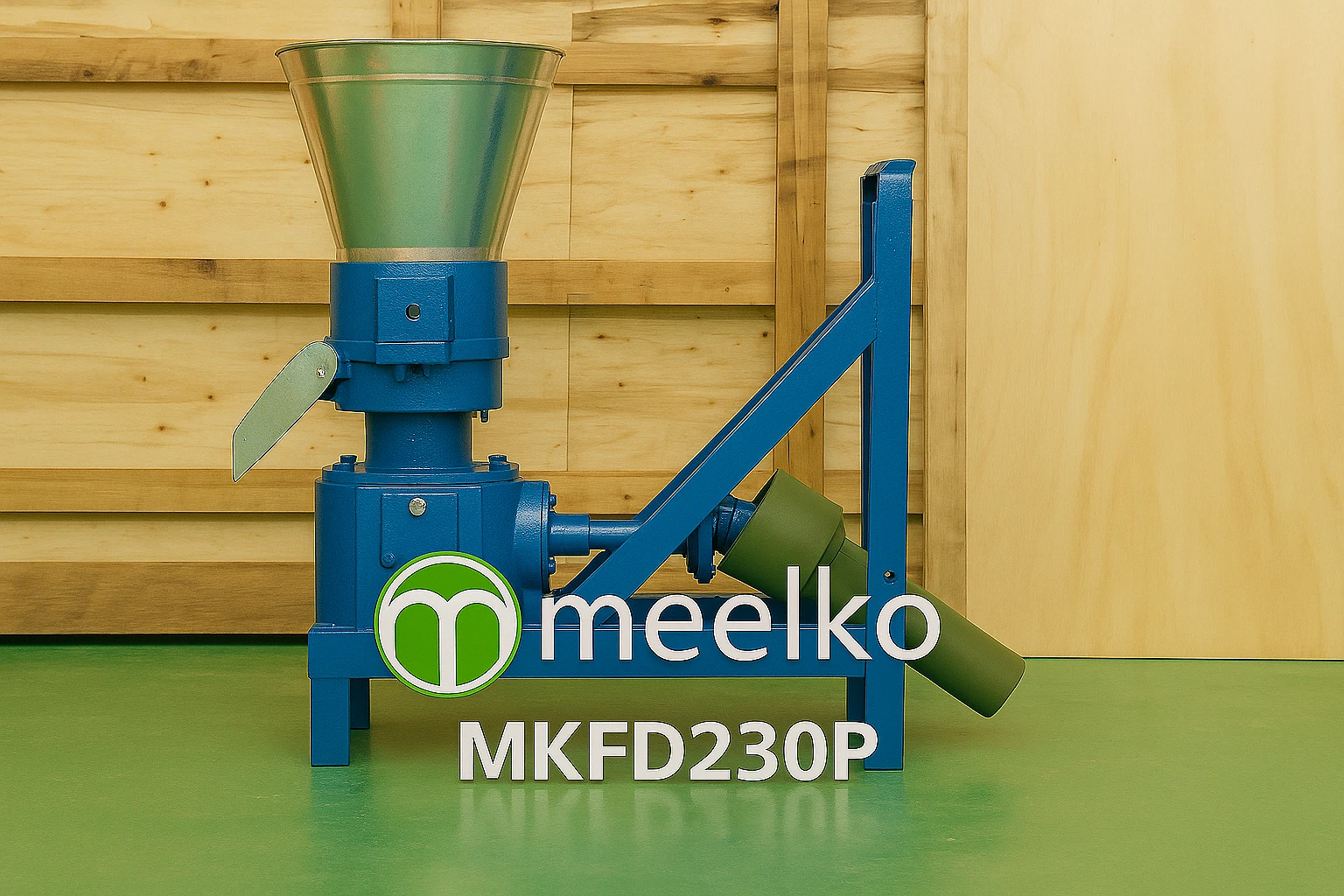

PTO Wood Pellet Machine MKFD230P 230 mm – Meelko
The Meelko MKFD230P is a robust and efficient pellet machine specifically designed for the production of wood and biomass pellets through tractor power take-off (PTO) drive. Featuring a 230 mm diameter flat die, this machine offers a practical and economical solution for small and medium-scale forestry producers, sawmills, rural workshops, and agricultural operations looking to transform wood waste into high-energy solid fuel without relying on a fixed electrical power source.
Operating Principle and PTO Technology
The MKFD230P harnesses the mechanical power of the tractor through the PTO shaft, eliminating the need for independent electric or diesel motors. This drive system makes the machine completely mobile and versatile, allowing operation in remote locations where electrical grid access does not exist. The flat die compression mechanism works through rollers that press raw material against a perforated matrix, forcing the material through the holes to form compact and uniform cylindrical pellets. The friction generated during the compaction process naturally raises the temperature, activating the lignin present in the wood which acts as a natural binding agent.
Technical Specifications and Capacity
The 230 mm diameter flat die provides an optimized compression surface for achieving constant and uniform production output. The machine is constructed with high-strength materials, including rollers and die manufactured from heat-treated alloy steel to ensure long service life even when processing abrasive materials. The roller pressure adjustment system allows operators to adapt the compression according to the type of raw material being used, whether sawdust, wood shavings, pruning residues, or biomass mixtures. Production capacity varies according to material density and moisture content, but generally reaches satisfactory levels for small and medium-scale operations.
Compatible Raw Materials
The versatility of the MKFD230P allows it to process a wide range of raw materials from plant and forestry sources. Among the most commonly used materials are softwood and hardwood sawdust, planing shavings, shredded pruning residues, ground bark, sugarcane bagasse, rice husks, coffee residues, cereal straw, and other lignocellulosic biomass types. The optimal moisture content for processing should be maintained between 10 and 15 percent to ensure proper pellet formation and cohesion. Pre-drying is recommended if the raw material presents moisture levels above the optimal range for consistent pellet quality.
Advantages of PTO-Driven Production
The main advantage of the PTO system lies in its energy independence and total mobility. Rural producers can transport the machine directly to forestry waste generation points, significantly reducing raw material transportation costs. Additionally, utilizing the power of the existing farm tractor eliminates the need for additional investments in motors or electrical installations. This configuration proves especially beneficial for producers operating in areas far from urban centers or those who need to process biomass at multiple locations on a seasonal basis throughout the year.
Applications and Uses of Produced Pellets
Wood pellets manufactured with the MKFD230P have multiple applications in both domestic and industrial settings. In the domestic sphere, they serve as fuel for heating stoves and boilers, offering a renewable and economical alternative to fossil fuels. In the industrial sector, pellets provide thermal energy for drying processes, steam generation, and facility heating. Furthermore, biomass pellets can be marketed as packaged products for local and regional markets, generating an additional income source for forestry and agricultural producers seeking to diversify their revenue streams.
Maintenance and Durability
The MKFD230P has been designed with ease of maintenance and operational durability in mind. The main wear components, such as rollers and die, are interchangeable and available as spare parts through the Meelko distribution network. Routine maintenance includes periodic bearing lubrication, visual inspection of rollers and die condition, compression pressure adjustment, and general machine cleaning after each work session. By following the maintenance program recommended by Meelko, the machine maintains its optimal performance throughout thousands of hours of continuous operation.
Quality Standards and Environmental Benefits
The pellets produced by the MKFD230P meet quality standards for solid biomass fuels, with consistent diameter, length, and density specifications. The use of wood pellets as a renewable energy source contributes significantly to reducing carbon emissions compared to fossil fuels, as the carbon released during combustion is part of the natural carbon cycle. This environmental benefit, combined with the economic advantages of local fuel production, makes the MKFD230P an excellent investment for producers committed to sustainable forestry management and renewable energy generation in rural communities.
Technical Specifications
Applications:
This product is ideal for a wide range of industrial applications, including:
• Material processing
• Industrial production
• Manufacturing operations
• Automation systems
• Construction projects
Warranty and Support
All our products include complete warranty and specialized technical support. Our team is available to help you with any consultation or maintenance need.
General Information
| Product Name | : | PTO Wood Pellet Machine 230 mm – MKFD230P (Biomass Heating Pellets) |
| Price | : | $3,853.00 |
| Subcategory | : | Wood pellet mill |
| Category | : | Pellet Mills |
Technical Specifications
| Power | : | 16 kW |
| Capacity | : | 300 kg/hr |
| Dimensions | : | 1200*560*1070 mm |
| Weight | : | 150 kg |
| Humidity | : | 20% |
