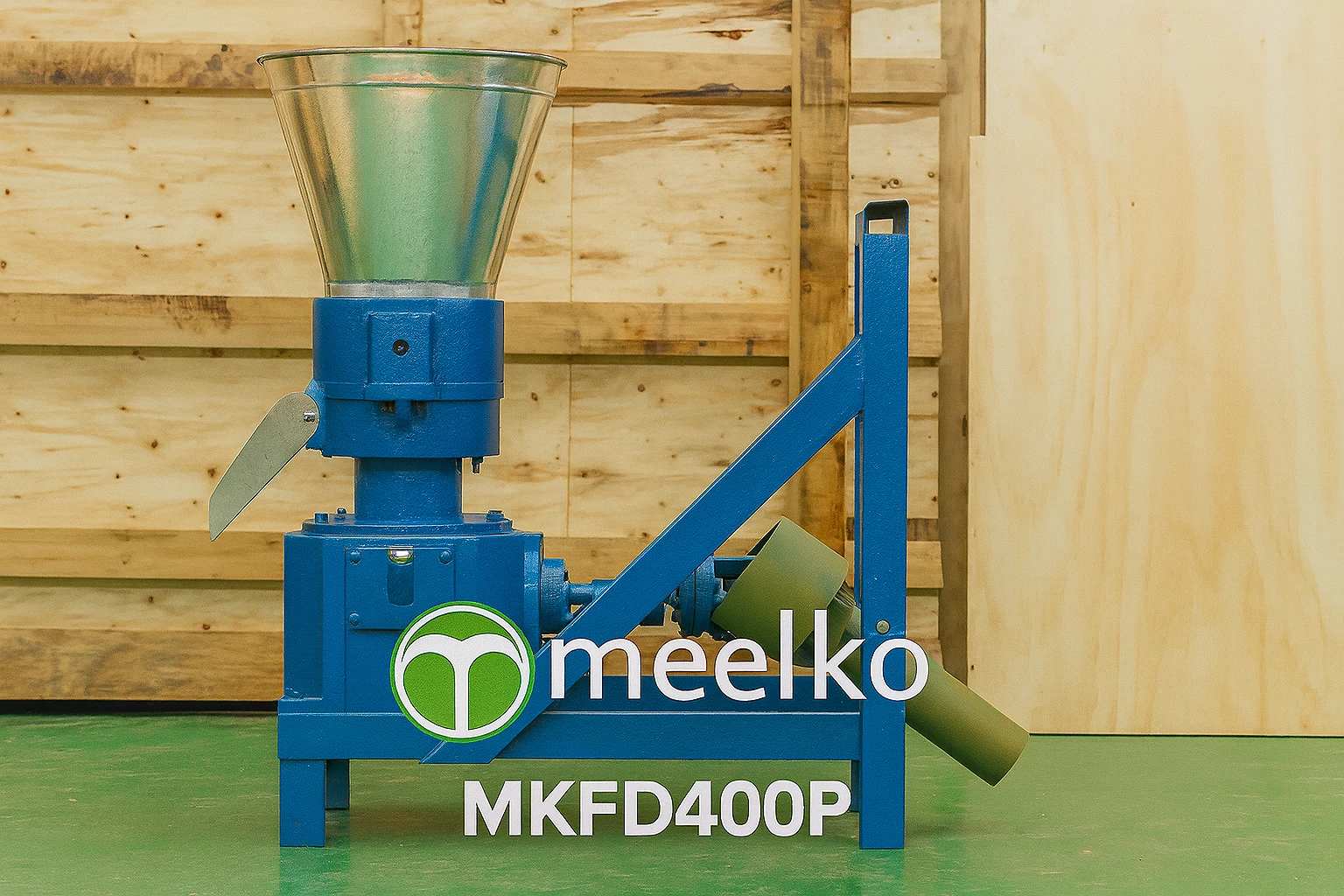

PTO Pellet Mill 400mm for Animal Feed – MKFD400P
The MKFD400P pellet mill by Meelko is the highest capacity model in the PTO line for balanced feed, designed for producers who require high daily pellet output and a reliable machine for continuous operation on medium and large farms.
Details:
PTO Pellet Mill 400mm for Balanced Feed – MKFD400P
The MKFD400P pellet mill by Meelko is the highest capacity model in the PTO line for balanced feed, designed for producers who require high daily pellet output and a reliable machine for continuous operation on medium and large farms.
With its 400 mm flat die, connected to the tractor's power take-off (PTO), the MKFD400P processes forages, grains, and supplements into compact, nutritious, and easy-to-store pellets, providing efficiency, savings, and control over animal diets.
Key Advantages
- Maximum capacity in the PTO line: over 1 ton of balanced feed per hour.
- Industrial robustness: built for long, uninterrupted work shifts.
- Total mobility: can be installed wherever the producer needs, whether in the field or in the barn.
- Energy independence: ideal for rural areas without reliable electricity.
Raw Material Preparation
For superior pellet quality, it is recommended to:
- Keep raw material moisture between 10% and 15%.
- Pre-grind grains and forages to a size smaller than the final pellet diameter (e.g., for 10 mm pellets, grind to 9 mm).
- Mix all components homogeneously with a horizontal mixer before pelletizing.
Materials Processed
The MKFD400P is suitable for a wide variety of raw materials used in balanced feed:
- Grains: corn, wheat, oats, sorghum.
- Vegetable proteins: soybean meal, oilseed cakes, expeller.
- Minerals and additives: mineral salts, shell grit, vitamin premixes.
- Fibers: hay, ground alfalfa, dried grasses.
Thanks to its power and size, the machine handles complete formulas suitable for beef cattle, pigs, horses, and poultry in large-scale production.
Construction and Durability
- Modular cast iron structure for high mechanical strength.
- Tempered SAE steel dies and rollers, designed for intensive use.
- Baked anti-corrosive paint finish extends service life even under demanding conditions.
Maintenance
Designed for easy user maintenance:
- Regular lubrication of bearings.
- Gearbox oil change once a year.
Spare Parts and Warranty
- Original Meelko spare parts available directly from the factory.
- 3-year structural warranty.
- 12-month warranty on rollers, dies, and shafts.
Technical Specifications
- Capacity: 800–1040 kg/h
- Required tractor power: 75 HP PTO
- Package weight: 600 kg
- Package dimensions: 1600 × 750 × 1350 mm
Includes:
- Flat die extractor.
- Maintenance and assembly tool kit.
- Manual grease gun.
Meelko Support
At Meelko, we understand that investing in a high-capacity machine requires support. That’s why we offer:
- Initial guidance for start-up and operation.
- Practical training in raw material preparation and parameter adjustment.
- Guaranteed after-sales support, with original spare parts and direct technical assistance.
The MKFD400P is the ultimate choice for producers who need to scale their business, manufacture high-quality balanced feed in large volumes, and ensure a solid return on investment with Meelko’s backing.
Technical Specifications
Applications:
This product is ideal for a wide range of industrial applications, including:
• Material processing
• Industrial production
• Manufacturing operations
• Automation systems
• Construction projects
Warranty and Support
All our products include complete warranty and specialized technical support. Our team is available to help you with any consultation or maintenance need.
General Information
| Product Name | : | PTO Pellet Mill 400mm for Animal Feed – MKFD400P |
| Price | : | $9,718.00 |
| Subcategory | : | Animal feed |
| Category | : | Pellet Mills |
Technical Specifications
| Power | : | 75 kW |
| Capacity | : | 800 kg/hr |
| Dimensions | : | 1600*750*1350 mm |
| Weight | : | 600 kg |
| Humidity | : | 20% |
