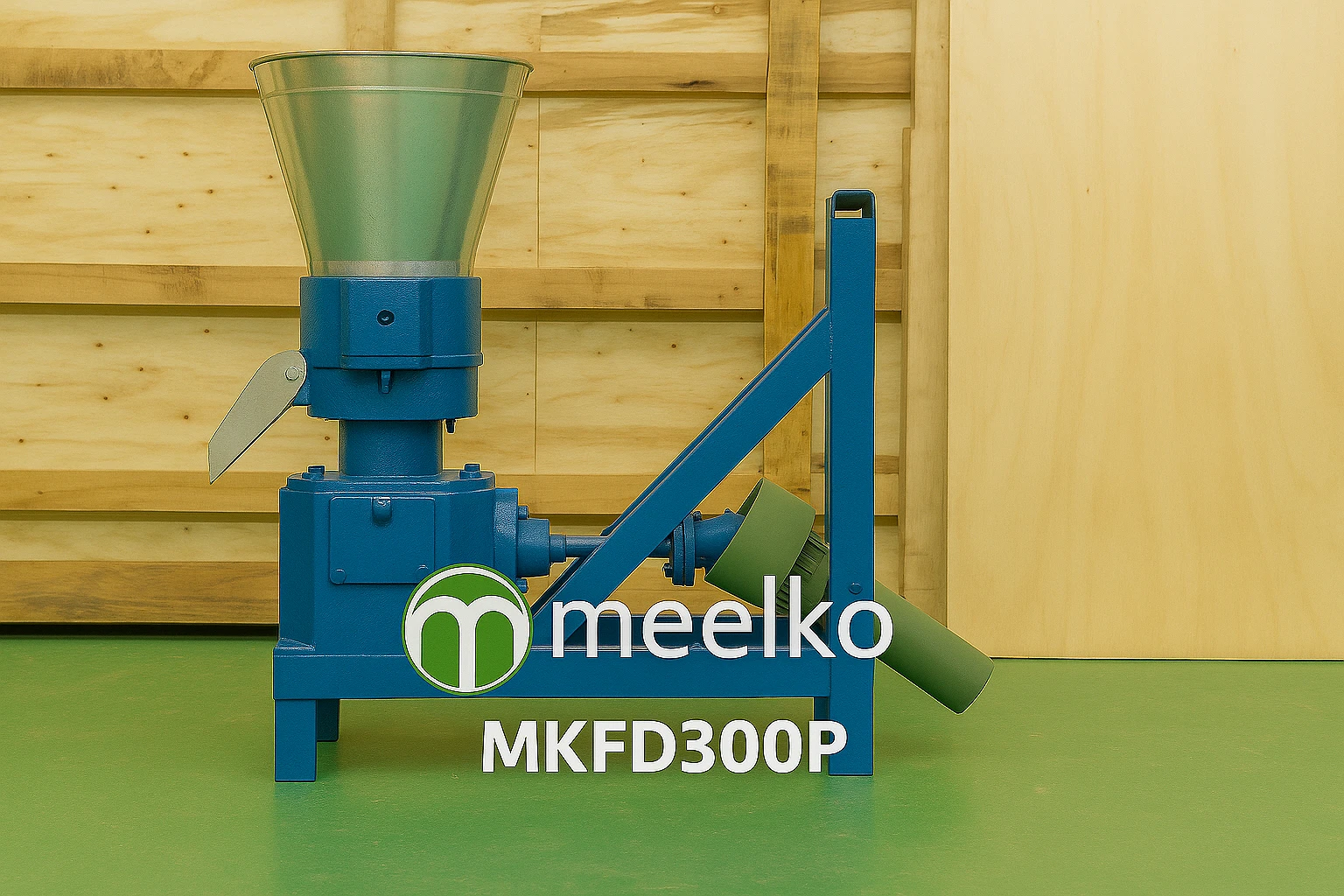

PTO Pellet Mill 300mm for Animal Feed – MKFD300P
The MKFD300P balanced feed pellet mill by Meelko is a machine designed for producers seeking a leap in capacity and efficiency. With its 300 mm flat die, connected to the tractor's power take-off (PTO), it enables the production of high-quality pellets from grains, forages, and mineral supplements.
Details:
PTO Pellet Mill 300mm for Balanced Feed – MKFD300P
The MKFD300P balanced feed pellet mill by Meelko is a machine designed for producers seeking a leap in capacity and efficiency. With its 300 mm flat die, connected to the tractor's power take-off (PTO), it allows the production of high-quality pellets from grains, forages, and mineral supplements, ensuring complete and homogeneous diets for all types of livestock.
Unlike smaller models, the MKFD300P offers higher output, making it an excellent choice for medium and large farms that need to ensure a daily supply of balanced feed without relying on external suppliers.
Main Benefits
- Intermediate-high capacity: perfect for feeding medium herds or several animal production lines.
- Electrical independence: operates using tractor power, no grid electricity required.
- Cost optimization: producing balanced feed on the farm reduces purchasing and transport expenses.
- Safe and controlled feed: the producer defines the formula according to species and production stage.
Raw Material Preparation
To achieve high-quality pellets, it is necessary to:
- Maintain moisture between 10% and 15% in the inputs.
- Grind grains and forages to a size smaller than the final pellet diameter (e.g., for 8 mm pellets, grind to 7 mm).
- Use a horizontal mixer to uniformly blend grains, proteins, and minerals before pelletizing.
Raw Materials Processed
The MKFD300P allows the production of pellets from a wide variety of inputs commonly used in animal feed:
- Cereals: corn, oats, wheat, sorghum.
- Proteins: soybean meal, vegetable cakes, sunflower expeller.
- Minerals and additives: mineral salts, shells, vitamin premixes.
- Dry forages: hay, alfalfa, ground pastures.
This versatility provides producers with a flexible tool to adapt to different species: beef cattle, pigs, poultry, or horses.
Robust Construction
- Modular cast iron frame for high resistance.
- Rollers and dies made of hardened SAE steel, ensuring high durability.
- Baked-on paint with anti-corrosive treatment, ideal for demanding rural environments.
Maintenance
Designed for quick and economical servicing by the user:
- Periodic lubrication of bearings.
- Gearbox oil change once a year.
Spare Parts and Warranty
- Original Meelko spare parts always available from the factory.
- 3-year structural warranty.
- 12-month warranty on rollers, dies, and shafts.
Technical Specifications
- Capacity: 600–800 kg/h
- Required tractor power: 55 HP PTO
- Package weight: 400 kg
- Dimensions: 1300 × 620 × 1220 mm (0.983 m³)
Includes:
- Flat die extractor.
- Maintenance and assembly tool kit.
- Manual grease gun.
Meelko Support
At Meelko, we deliver not only machines but also confidence:
- Initial technical advice for commissioning.
- Practical training on equipment operation and input preparation.
- Permanent after-sales support, with available spare parts and direct assistance.
With the MKFD300P, producers can take a step towards more efficient production, transforming raw materials into nutritious, durable, and easy-to-store pellets, ensuring a solid return on investment and total control over animal feeding.
Technical Specifications
Applications:
This product is ideal for a wide range of industrial applications, including:
• Material processing
• Industrial production
• Manufacturing operations
• Automation systems
• Construction projects
Warranty and Support
All our products include complete warranty and specialized technical support. Our team is available to help you with any consultation or maintenance need.
General Information
| Product Name | : | PTO Pellet Mill 300mm for Animal Feed – MKFD300P |
| Price | : | $6,550.00 |
| Subcategory | : | Animal feed |
| Category | : | Pellet Mills |
Technical Specifications
| Power | : | 48 kW |
| Capacity | : | 600 kg/hr |
| Dimensions | : | 1300*620*1220 mm |
| Weight | : | 400 kg |
| Humidity | : | 20% |
