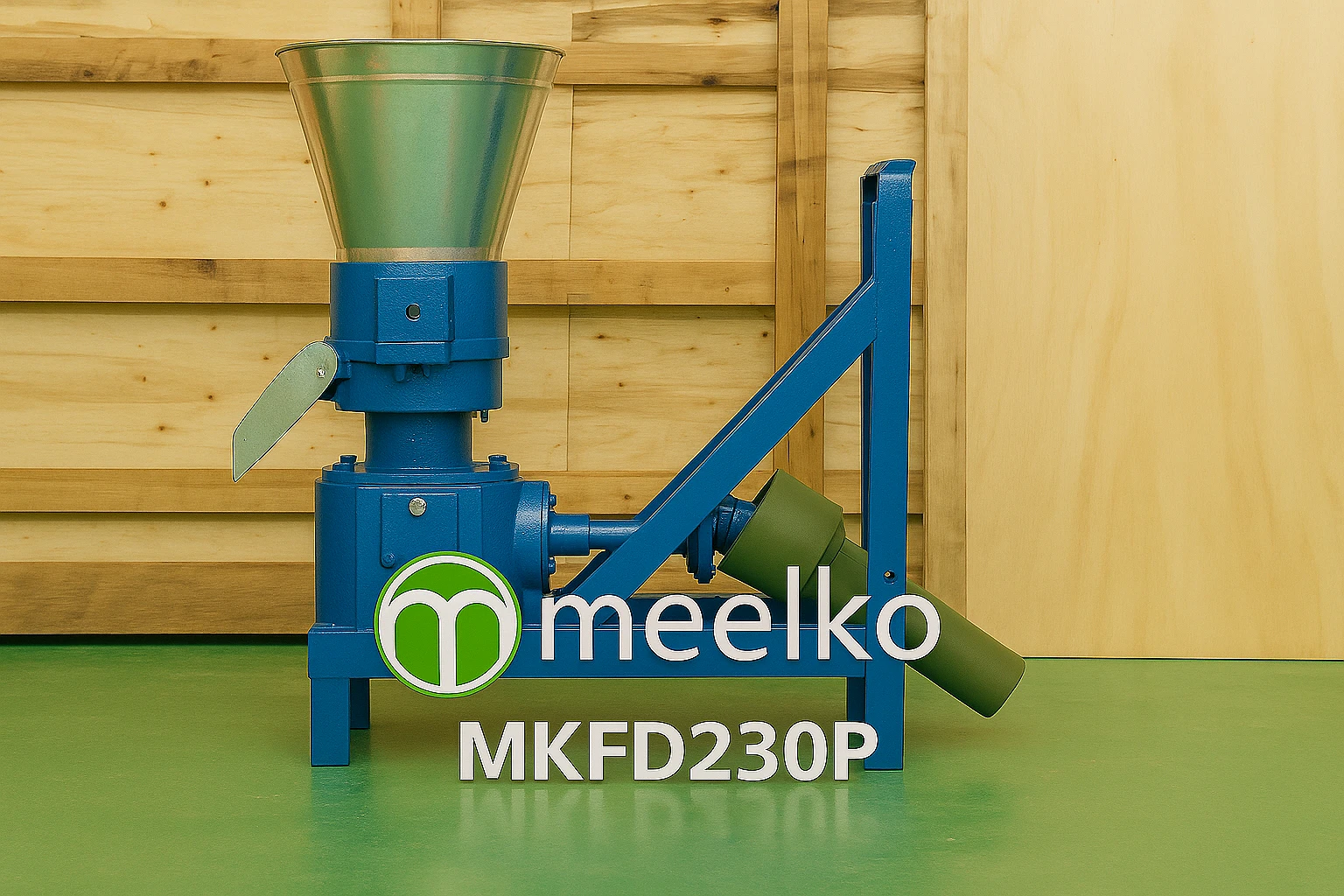

PTO Pellet Mill 230mm for Animal Feed – MKFD230P
The MKFD230P pellet mill by Meelko is a practical and reliable machine, specially designed for rural producers who want to manufacture balanced feed autonomously.
Details:
PTO Pellet Mill 230mm for Balanced Feed – MKFD230P
The MKFD230P pellet mill by Meelko is a practical and reliable machine, specially designed for rural producers who want to manufacture balanced feed autonomously. Its operation through the tractor’s power take-off (PTO) makes it an ideal option for small and medium-sized farms that lack sufficient access to electricity but need to maintain stable and high-quality production.
With its 230 mm flat die, this equipment can transform grains, flours, and dry forages into compact and nutritious pellets, providing immediate added value to agricultural and livestock production.
Main Advantages
- Energy independence: does not require electricity, operates with tractor power.
- Portability and flexibility: can be moved to the field or storage shed without limitations.
- Consistent production: suitable for maintaining animal diets in dairies, feedlots, or poultry farms.
- Profitability: by producing their own pellets, producers save on commercial feed purchases and gain control over feed formulas.
Input Preparation
To obtain quality pellets, it is essential to meet certain parameters:
- Material moisture between 10% and 15%.
- Grind ingredients to a size smaller than the final pellet diameter (example: for 6 mm pellets, grind to 5 mm).
- Mix inputs homogeneously with a horizontal mixer before feeding the machine.
Compatible Inputs
The MKFD230P is designed to work with a wide variety of raw materials used in animal balanced feed:
- Cereals: corn, wheat, oats, sorghum.
- Vegetable proteins: soybean meal, sunflower cake, expeller.
- Minerals and additives: salts, shells, vitamin premixes.
- Fibers: dry pastures, hay, ground alfalfa.
This versatility allows for the formulation of diets adapted to different species and production stages, improving animal nutrition efficiency.
Construction and Durability
- Modular cast iron structure, solid and reliable.
- Tempered SAE steel dies and rollers, resistant to intensive work.
- Baked paint with anti-corrosive treatment, protecting the machine against moisture and wear.
Maintenance
The MKFD230P is designed to be simple and practical, allowing the user to perform routine maintenance:
- Periodic lubrication of bearings.
- Gearbox oil change once a year.
Spare Parts and Warranty
- Original Meelko spare parts always available.
- 3-year structural warranty.
- 12-month warranty on rollers, dies, and shafts.
Technical Specifications
- Capacity: 300–400 kg/h
- Required tractor power: 22 HP PTO
- Package weight: 150 kg
- Dimensions: 1200 × 560 × 1070 mm (0.719 m³)
Includes:
- Flat die extractor.
- Maintenance and assembly tool kit.
- Manual grease gun.
Producer Support
At Meelko we support our clients every step of the way:
- Initial advice on use and start-up.
- Practical training in raw material preparation.
- After-sales support and direct access to spare parts.
With the MKFD230P, producers can start manufacturing high-quality balanced feed on their own farm, reducing costs, improving animal nutrition, and achieving a guaranteed return on investment.
Technical Specifications
Applications:
This product is ideal for a wide range of industrial applications, including:
• Material processing
• Industrial production
• Manufacturing operations
• Automation systems
• Construction projects
Warranty and Support
All our products include complete warranty and specialized technical support. Our team is available to help you with any consultation or maintenance need.
General Information
| Product Name | : | PTO Pellet Mill 230mm for Animal Feed – MKFD230P |
| Price | : | $3,853.00 |
| Subcategory | : | Animal feed |
| Category | : | Pellet Mills |
Technical Specifications
| Power | : | 16 kW |
| Capacity | : | 300 kg/hr |
| Dimensions | : | 1200*560*1070 mm |
| Weight | : | 150 kg |
| Humidity | : | 20% |
