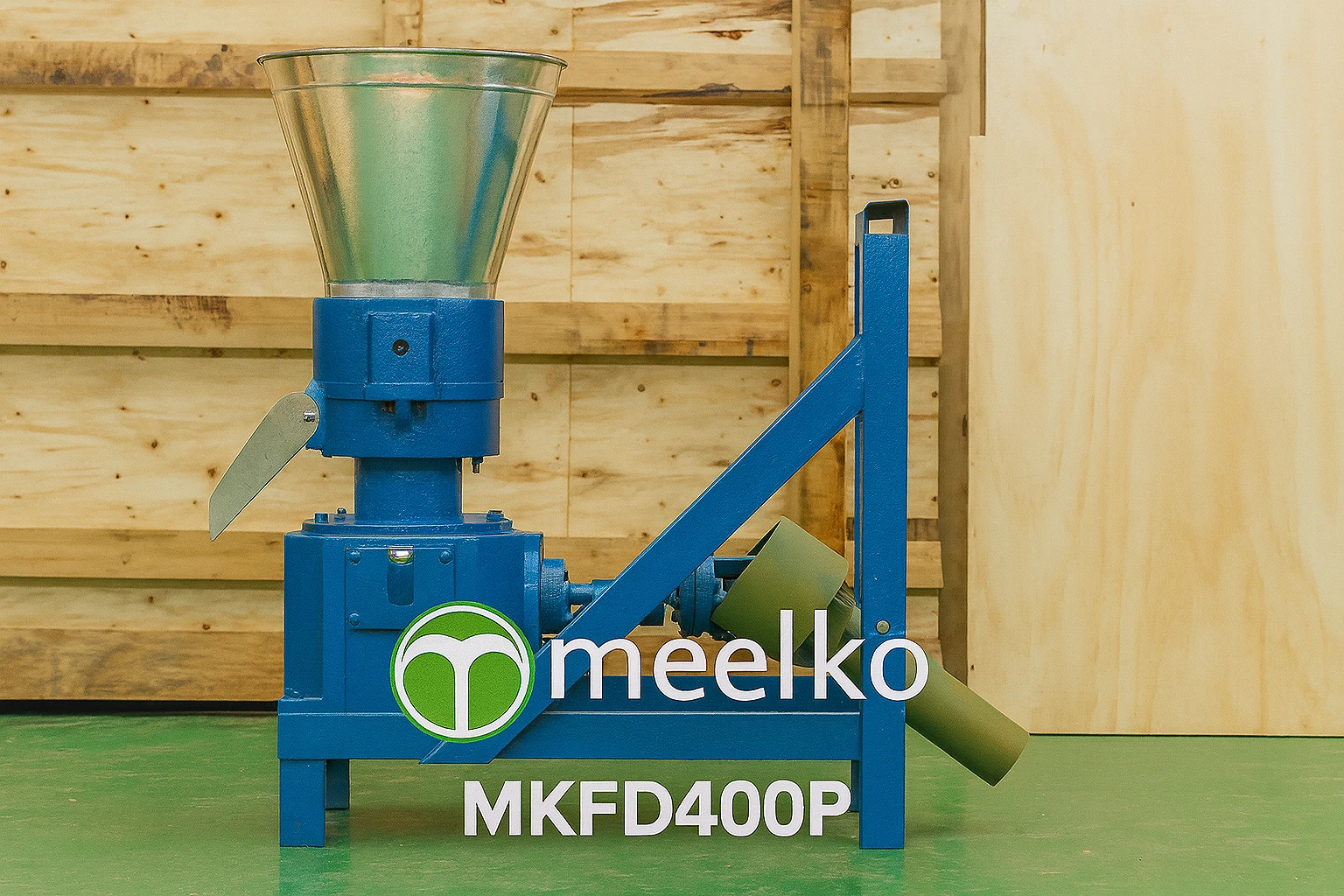

Pellet Mill 400mm PTO for Alfalfa and Forage
The MKFD400P pellet mill with PTO drive is designed for producers seeking energy independence, versatility, and high performance in the production of alfalfa pellets, pasture, and forage blends. With its 400 mm diameter die, it combines practicality and power, allowing you to turn forage into a nutritious, easy-to-store feed without relying on electricity.
Details:
Alfalfa Pellet Mill with PTO Drive 400mm – MKFD400P
The MKFD400P pellet mill with PTO drive is designed for producers seeking energy independence, versatility, and high performance in the production of alfalfa pellets, pasture, and forage blends. With its 400 mm diameter die, it combines practicality and power, allowing you to turn forage into a nutritious, easy-to-store feed without relying on electricity.
Practical and adaptable operation
This model connects directly to the tractor's PTO, making it the ideal choice for rural areas without reliable access to electricity. Simply attach it to the tractor's shaft to start pellet production immediately, with no need for electrical panels, generators, or additional installations.
Efficient and continuous production
The MKFD400P delivers outstanding performance:
- Capacity of 800 to 1,040 kg/h, ideal for small and medium producers.
- Continuous operation throughout the day without interruptions.
- Versatility in formulations, as it can process pure alfalfa or blends with other ingredients.
Thanks to friction-based compaction, the machine reaches the optimal temperature (70–80 °C) to activate the natural binder in the forage, producing consistent, high-quality pellets.
Material preparation
To ensure optimal pellets, the raw material must be properly conditioned:
- Ideal moisture: between 9% and 14%.
- Dry forage: similar to that used for baling.
- Pre-grinding: fiber should be ground one millimeter smaller than the desired pellet diameter (e.g., 7 mm grind for 8 mm pellets).
If the material is too dry, it can be rehydrated with a small percentage of water to reach the recommended level.
Balanced diets with alfalfa
In addition to pure alfalfa pellets, the machine allows you to mix up to 40% concentrates and other inputs, producing balanced feeds with higher nutritional value.
Examples of compatible ingredients:
- Corn, oats, or soybeans.
- Vitamin premixes.
- Salts and minerals.
- Bone meal and protein supplements.
With a horizontal mixer, the producer can homogenize the formula before pelleting, maximizing the quality of the final product.
Robust and durable construction
- High-strength modular cast iron frame.
- Rollers and dies made of hardened SAE steel, designed for long working hours.
- Baked-on paint with anti-corrosion treatment, protecting the equipment in demanding environments.
The MKFD400P is built to serve the producer for many years, with minimal maintenance.
Easy maintenance
The equipment is designed so the user can perform basic service quickly and economically:
- Regular greasing of bearings.
- Oil change in the gearbox once a year.
It also includes a tool kit and manual grease gun, making preventive maintenance tasks easier.
Spare parts and warranty
With MEELKO, customers have peace of mind with original spare parts and specialized technical support.
- 3-year warranty on the frame.
- 12-month warranty on rollers, shafts, and dies.
Technical specifications
- Capacity: 800–1,040 kg/h
- Drive: Tractor PTO
- Die diameter: 400 mm
- Continuous production without interruptions
- Dimensions and weight: robust design, transportable in rural environments
Includes:
- User manual in Spanish.
- Tool kit and grease gun.
- Standard flat die of buyer's choice (4 to 10 mm).
Advantages for the producer
- Independence from electrical power.
- High-volume production in a short time.
- Transforms forage into a high value-added product.
- Ideal for rural enterprises and medium-sized farms.
After-sales service and support
At MEELKO we offer much more than a machine: we provide initial technical advice, training during the learning phase, and ongoing after-sales support, so producers can work safely from day one.
In this way, the MKFD400P is not only a productive tool, but also a strategic ally for starting and growing your alfalfa pellet business.
Technical Specifications
Applications:
This product is ideal for the following industrial applications:
Warranty and Support
All our products include complete warranty and specialized technical support. Our team is available to help you with any consultation or maintenance need.
General Information
| Product Name | : | Pellet Mill 400mm PTO for Alfalfa and Forage - MKFD400P |
| Price | : | $9,718.00 |
| Subcategory | : | Alfalfa pellet mills |
| Category | : | Pellet Mills |
Technical Specifications
| Power | : | 65 kW |
| Capacity | : | 600 kg/hr |
| Weight | : | 500 kg |
| Humidity | : | 17% |
