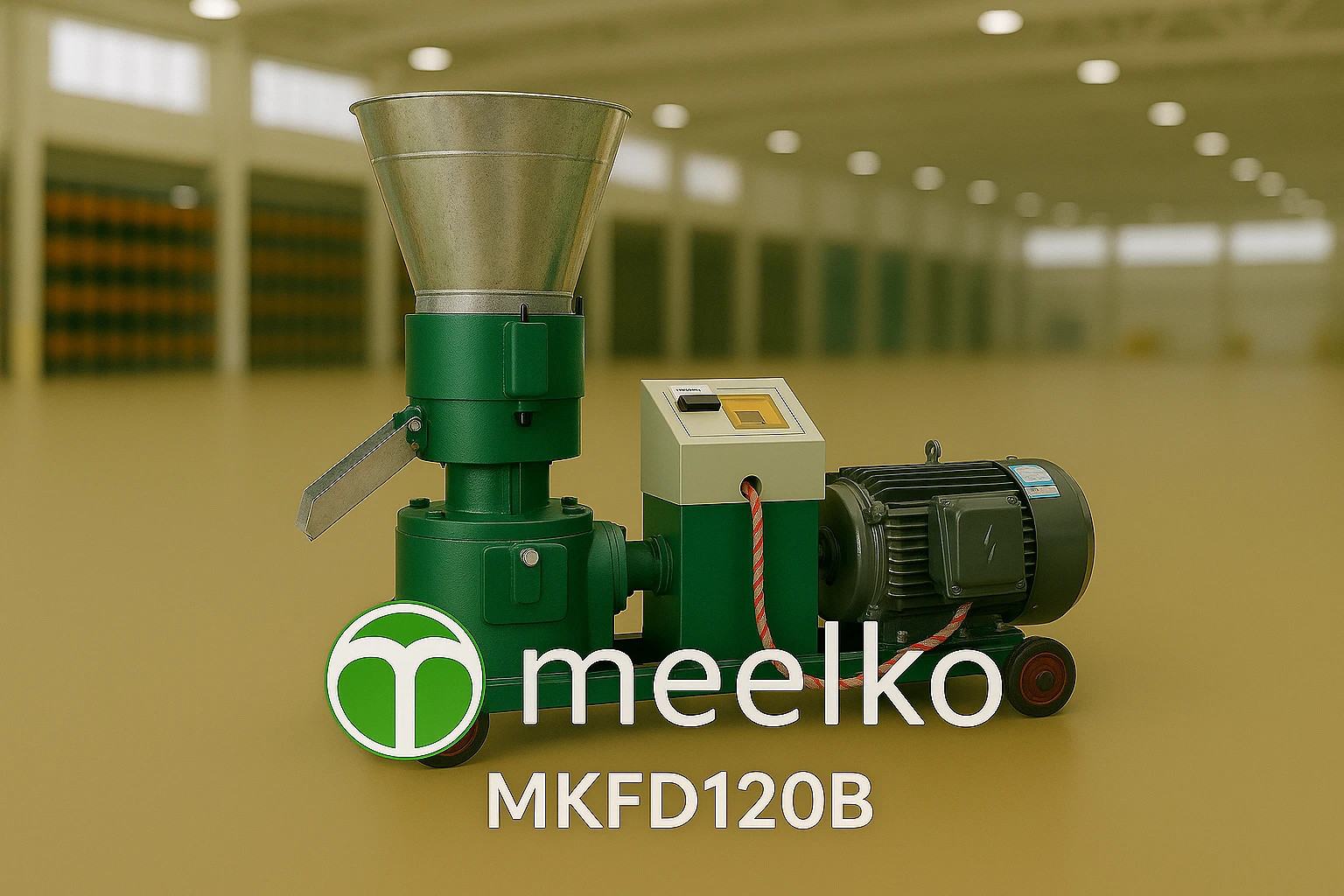

Pellet Mill 120mm Electric 3kW for Alfalfa and Forage
The MKFD120B electric pellet mill is the most compact model in our range, ideal for small farms, family producers, and entrepreneurs looking to enter the pellet business. Designed to process alfalfa, grasses, and forages into a nutritious and easy-to-store feed, this machine combines practicality, low energy consumption, and the quality that defines MEELKO.
Details:
Alfalfa Pellet Mill 120mm – MKFD120B
The MKFD120B electric pellet mill is the most compact model in our range, ideal for small farms, family producers, and entrepreneurs starting in the pellet business. Designed to process alfalfa, grasses, and forages into a nutritious and easy-to-store feed, this machine combines practicality, low energy consumption, and the quality that defines MEELKO.
Forage Preparation
To ensure high-quality pellets, it is essential to properly prepare the raw material:
- Recommended moisture: between 9% and 14%.
- Sun-dried forage: ready for baling, is best suited for pelleting.
- Avoid freshly cut grass, as it contains excess water.
- If too dry, it can be slightly moistened to reach the ideal level.
- Pre-grinding: material should be ground to a size smaller than the pellet diameter (e.g., 7 mm grinding for 8 mm pellets).
This ensures a compact, uniform pellet with good visual appearance.
Balanced Formulas with Alfalfa
The MKFD120B not only produces pure alfalfa pellets but also adapts to the production of balanced diets by mixing other ingredients. Up to 40% concentrates can be included in the mix.
Example ingredients:
- Corn, soybeans, or oats.
- Bone meal, minerals, and salts.
- Vitamin premixes and protein supplements.
For homogeneity, it is recommended to use a horizontal mixer beforehand.
Benefits for Small Producers
- Affordable investment: compact equipment, ideal for starting a business.
- Versatility: suitable for various forages in addition to alfalfa.
- Practical production: pellets are easy to transport, store, and dose.
- Long shelf life: up to 5 years while maintaining properties.
- Immediate added value: alfalfa pellets fetch a better price than bales.
Safety and Electrical Systems
The MKFD120B features protections that ensure safe operation:
- Direct start with thermal switch (2.2–3 kW).
- Motor protector to safeguard the equipment in case of overload.
- Emergency stop button for easy access.
- Phase control to prevent damage to three-phase motors.
- Voltage and amperage meters for real-time consumption monitoring.
- Metal electrical cabinets with epoxy paint, CE compliant.
Robust Construction
- Modular cast chassis for high durability.
- Tempered SAE steel dies and rollers, designed for plant fibers.
- Baked paint with anti-corrosion treatment for long-term protection.
Easy Maintenance
Designed so the user can perform basic maintenance without third-party assistance:
- Regular lubrication of bearings.
- Gearbox oil change once a year.
Spare Parts and Warranty
- Availability of genuine MEELKO spare parts directly from the factory.
- 3-year warranty on the structure.
- 12-month warranty on critical parts (rollers, shafts, dies).
Technical Specifications
- Capacity: 75–100 kg/h
- Power: 2.2 kW (single-phase) or 3 kW (three-phase)
- Package weight: 90 kg
- Package dimensions: 750 × 320 × 740 mm (0.1776 m³)
Includes
- Flat die extractor.
- Tool kit for assembly and maintenance.
- Manual grease gun.
Support and Assistance
At MEELKO, we understand that this model is often the gateway to the pellet business. That’s why we offer:
- Technical advice for commissioning.
- Training during the learning process, even for those with no prior experience.
- After-sales support for formulas, adjustments, and maintenance.
- Immediate spare parts and direct factory support.
This way, any producer can turn their alfalfa into profitable balanced feed, with the confidence of having the best service.
Technical Specifications
Applications:
This product is ideal for the following industrial applications:
Warranty and Support
All our products include complete warranty and specialized technical support. Our team is available to help you with any consultation or maintenance need.
General Information
| Product Name | : | Pellet Mill 120mm Electric 3kW for Alfalfa and Forage 70-90kg/h - MKFD120B |
| Price | : | $2,024.00 |
| Subcategory | : | Alfalfa pellet mills |
| Category | : | Pellet Mills |
Technical Specifications
| Power | : | 2.2 kW |
| Capacity | : | 75 kg/hr |
| Dimensions | : | 750*320*740 mm |
| Weight | : | 80 kg |
| Humidity | : | 17% |
