Name: Oilseed extrusion press for oil extraction 150-200 kg/hr
Brand: Meelko
Price: 5792.39 USD
Availability: InStock

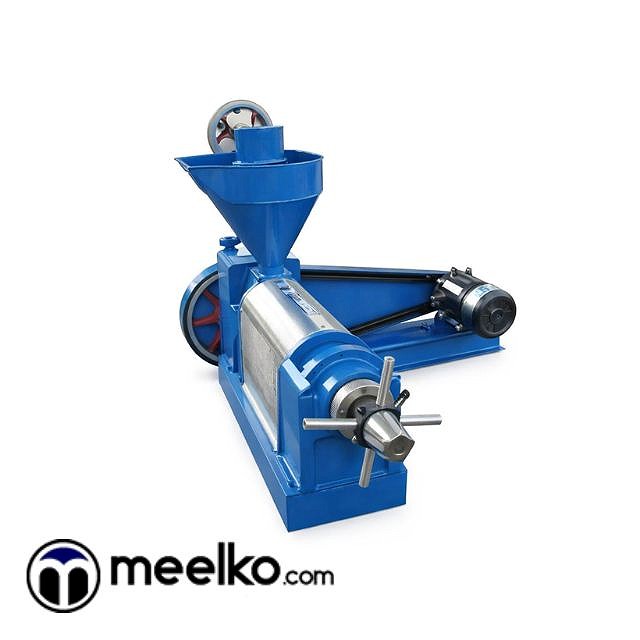

Oilseed extrusion press for oil extraction 150-200 kg/hr

The oilseed extrusion press with a capacity of one hundred fifty to two hundred kilograms per hour extracts vegetable oil from seeds like soybean, sunflower and canola through continuous mechanical pressure. Its semi compact design offers excellent balance between productive capacity and footprint.

Details:

The oilseed extrusion press with a capacity of one hundred fifty to two hundred kilograms per hour is a semi compact industrial machine designed for continuous mechanical extraction of vegetable oil from various oilseed crops. This extrusion system offers an optimal balance between productive capacity and installation size allowing processing of raw materials such as soybean, sunflower, canola, cottonseed, peanut, flaxseed and sesame to obtain quality crude vegetable oil through controlled mechanical pressure.

The operating principle of this press is based on a high strength helical screw that progressively compresses seeds inside a cylindrical pressing chamber equipped with precision calibrated drainage bars. As the material advances through the screw pressure increases gradually until reaching levels necessary to separate the oil contained in the oleaginous cells from the residual solid mass. The optimized system design allows achieving extraction rates above eighty three percent of the total oil content in processed seeds.

The semi compact construction of this press positions it as an intermediate option between smaller artisanal use models and large high capacity industrial presses. This configuration is ideal for medium processing plants, agricultural producer cooperatives and agroindustrial companies seeking equipment with significant productive capacity without requiring the large facilities and investment associated with larger scale equipment for daily processing operations.

All main components are manufactured from high durability materials including the extrusion screw in special heat treated hardened steel that withstands the pressures and temperatures of the compression process. The stainless steel drainage bars with calibrated spacing allow efficient oil discharge while retaining cake solids within the compression zone throughout the entire extraction cycle ensuring maximum oil recovery.

The feeding system includes a hopper with dosing screw that regulates the constant flow of seeds into the compression zone. This controlled feeding mechanism is essential for maintaining uniform pressure in the pressing chamber and obtaining consistent results in extraction yield and oil quality. Feed rate is adjustable according to seed type and its fat content characteristics to optimize performance with each raw material processed.

The electric motor provides the necessary torque for continuous operation of the compression system through an efficient helical gear reduction box. Its moderate energy consumption improves the ratio between operating cost and production volume compared to higher capacity models making this equipment an economically attractive option for medium scale operations processing between one and two tons of oilseeds per day.

The versatility of this press allows processing a wide variety of seeds by adjusting operating parameters. For seeds with high oil content like sunflower or sesame moderate pressure configurations are used while more compact seeds like soybean require higher pressure adjustments to achieve efficient extraction of oil contained within the cellular matrix of each specific seed type being processed at the facility.

The crude vegetable oil obtained exhibits quality characteristics suitable for subsequent refining or for direct use in cold pressed oil applications. Mechanical extraction better preserves the nutritional properties of the oil compared to solvent methods maintaining superior levels of tocopherols, phytosterols and beneficial bioactive compounds naturally present in oilseeds throughout the complete extraction process from feed to final product.

The residual cake contains high quality vegetable protein and fiber with variable residual oil content depending on the type of seed processed and operating conditions. This valuable byproduct can be commercialized as an ingredient for animal feed or as raw material for the food industry representing an additional revenue source that improves the overall profitability of the extraction operation.

Maintenance has been designed to be practical and economical. Wear components such as screw sections, drainage bars and adjustment rings can be individually replaced without disassembling the entire machine. Spare parts are available to guarantee operational continuity of the processing plant throughout the entire productive season without prolonged interruptions to the production schedule.

This oilseed extrusion press of one hundred fifty to two hundred kilograms per hour represents a balanced industrial solution for medium sized companies dedicated to vegetable oil production. Its intermediate capacity, robust design and versatility to work with multiple seed types make it a strategic investment for agroindustrial development with professional results and competitive return on investment.

Technical Specifications

Power 7.5 kW

Capacity 150-200 kg/hr

Dimensions 1920*460*820 mm

Weight 460 kg

Humidity 9%

Applications:

This product is ideal for a wide range of industrial applications, including:

• Material processing
• Industrial production
• Manufacturing operations
• Automation systems
• Construction projects

Warranty and Support

All our products include complete warranty and specialized technical support. Our team is available to help you with any consultation or maintenance need.
