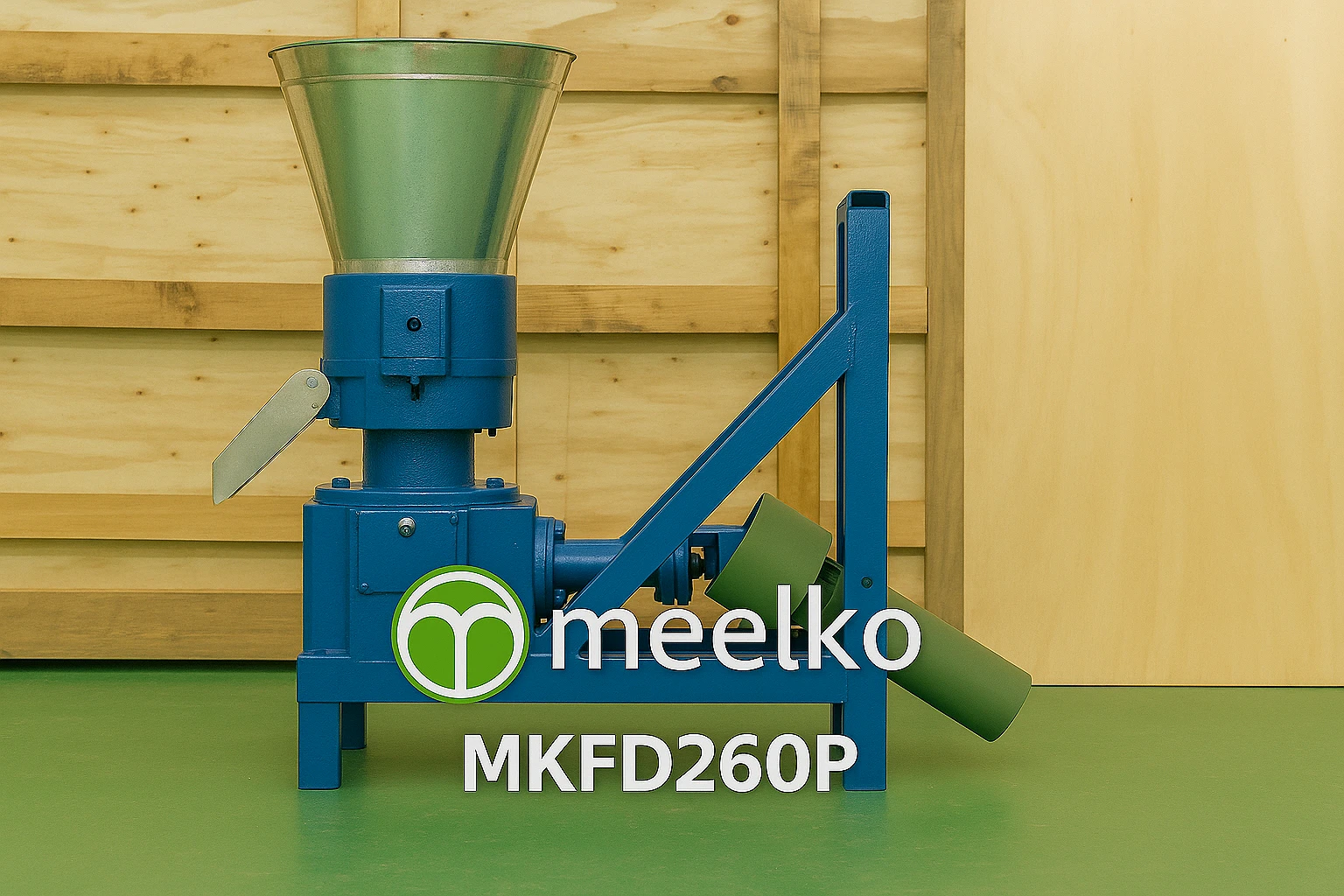

MKFD260P PTO Pellet Mill – 260 mm
Details:
MKFD260P PTO Pellet Mill: Pellet Production Without Electricity
The MKFD260P PTO pellet mill from Meelko is an efficient and versatile solution for agricultural producers looking to manufacture high-quality pellets directly on their premises, without requiring three-phase electrical power or additional infrastructure investments. This machine connects directly to the tractor's power take-off (PTO) shaft, harnessing the vehicle's engine power to drive the 260 mm die and transform vegetable raw materials into densified pellets ready for animal feeding or combustion use in heating systems.
Design and Construction
The MKFD260P has been manufactured with high-resistance materials to withstand continuous use in rural environments. The housing is built from treated carbon steel, and the 260 mm circular die is made from hardened stainless steel to ensure long service life even when processing abrasive materials. The pressing rollers are designed to exert uniform pressure on the layer of material entering the pelleting chamber, ensuring homogeneous compaction and consistent quality in every production batch.
The PTO coupling is standard, compatible with most Category I and II tractors available on the market. This system eliminates the need for an independent electric motor, reducing installation costs and long-term operating expenses. The transmission features high-precision gears that minimize power losses between the tractor and the working chamber, guaranteeing efficient transfer of the available mechanical energy throughout the entire production process.
Main Applications
The MKFD260P pellet mill is ideal for a wide range of agricultural and industrial applications. Its most common uses include the production of alfalfa and forage pellets, wood pellets for heating, soybean meal and other grain by-product pellets for animal feed, as well as nutritional concentrates for cattle, pigs, poultry, and rabbits. It is also used to process sugarcane bagasse, cereal straw, rice husks, and other lignocellulosic materials that gain economic value when densified into compact, high-energy pellets.
The ability to move from one location to another alongside the tractor makes this machine particularly valuable for operations with multiple plots or for mobile pelleting service providers who work on demand at different farms throughout the region, optimizing available resources without needing to duplicate equipment investments.
Technical Parameters
The MKFD260P has an estimated production capacity of 120 to 200 kg/h depending on the type of raw material, its moisture content, and operating conditions. It requires a tractor power output of between 30 and 55 HP, although the best results are achieved with tractors in the 40 to 50 HP range. The diameter of the pellets produced varies according to the die used, and the company offers interchangeable dies with different hole diameters to accommodate different animal feeding or energy requirements. The total weight of the unit is approximately 280 kg, making it easy to transport between different work locations without requiring special lifting equipment.
Advantages Over Electric Pellet Mills
The main advantage of the MKFD260P over electrically driven pellet mills is complete independence from the power grid. In many rural areas, the availability of three-phase electricity is limited or nonexistent, making it impossible to run high-power motors. The MKFD260P solves this problem entirely, allowing pellet production at any point in the field where the tractor can access without electrical grid limitations.
Furthermore, the operating cost per equivalent kilowatt is significantly lower when the tractor is already available on the farm, as industrial electricity expenses are eliminated entirely. Another important benefit is the reduction in start-up times: no prior electrical installation is required, nor does the producer need to hire a specialized electrician to begin productive operations on the farm.
Installation and Start-Up
Installing the MKFD260P is straightforward and can be carried out without specialized technical knowledge. The operator must position the machine stably on a level surface, connect the PTO shaft to the tractor's hitch, verify that the transmission tension is correct, and adjust the tractor speed to the recommended range of 540 RPM. Before first use, it is recommended to lubricate all points indicated in the manual, check the condition of the rollers and die, and perform a no-load test for five minutes to confirm that all components of the transmission and compression system are functioning correctly.
Maintenance and Service Life
Preventive maintenance of the MKFD260P is basic and can be carried out by the operator themselves without requiring specialized tools. Bearings should be lubricated every 8 hours of work, the pelleting chamber should be cleaned at the end of each workday to prevent hardened residue buildup that could damage internal components, and the condition of the die and rollers should be checked every 50 hours of operation to detect premature wear. With proper maintenance, the die service life exceeds 800 hours, and the pressing rollers are designed to be easily replaced without needing to disassemble the entire unit.
Why Choose Meelko
Meelko is a specialized manufacturer of agroindustrial machinery with a presence in more than 30 countries worldwide. All equipment passes rigorous quality controls before dispatch from the factory, and the company offers technical support, certified spare parts, and comprehensive after-sales assistance to ensure the customer's operational continuity over time. The MKFD260P is backed by years of experience in the mechanical drive pellet mill market, and its design has been continuously improved based on feedback from producers operating in different climates, altitudes, and working conditions around the world.
Applications:
This product is ideal for a wide range of industrial applications, including:
• Material processing
• Industrial production
• Manufacturing operations
• Automation systems
• Construction projects
Warranty and Support
All our products include complete warranty and specialized technical support. Our team is available to help you with any consultation or maintenance need.
General Information
| Product Name | : | MKFD260P PTO Pellet Mill – 260 mm |
| Price | : | $5,377.00 |
| Subcategory | : | PTO Pellet Mills |
| Category | : | Pellet Mills |
