Meelko 10 000 kg/h Pellet Plant – Fully Automated Industrial Production Line
Details:

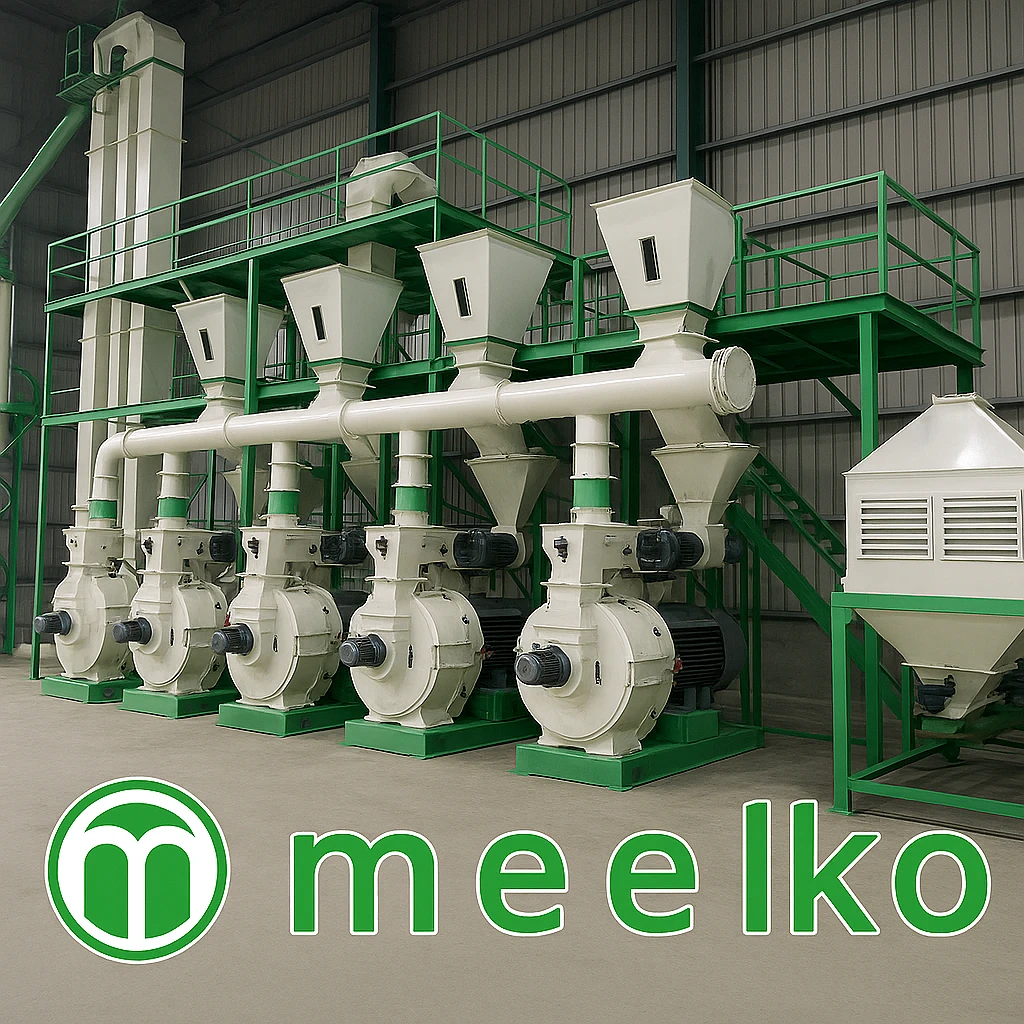

Pellet Plant 10,000 kg/h – Four MKRD508C-W Lines for Large-Scale Industrial Production
The Meelko 10,000 kg/h Pellet Plant is the highest-capacity solution in the entire Meelko range, engineered for export operations, large agro-industrial complexes, and biomass energy producers requiring unprecedented continuous industrial throughput. With four MKRD508C-W ring-die pellet mills running in parallel under a centralized PLC control system, this plant represents the highest level of automation and reliability in pellet production available on the market.
Four-Line Configuration and Operational Redundancy
The core of the plant is four MKRD508C-W flat-ring-die pellet mills operating synchronously to reach the full 10,000 kg/h output. This four-line architecture offers the maximum operational redundancy available on the market: if one or two lines require technical intervention, the plant can continue producing at 50 or 75% of nominal capacity without interrupting delivery commitments. Each pellet mill has its own steam conditioning system, allowing individual adjustment of processing conditions per line to maximize pellet quality regardless of raw material variations.
Centralized Control System and Automation
The plant integrates a SCADA system with touch-screen interface that centralizes control of all subsystems: feeding, conditioning, pelletizing, cooling, screening, and bagging. The operator can monitor and adjust all production parameters in real time from a single workstation, with historical data logging for performance analysis and process traceability. A multi-layer alarm system detects anomalies at any point in the line and automatically activates safe shutdown protocols, protecting equipment and ensuring product integrity. Remote connectivity allows Meelko's technical team to perform diagnostics and software updates remotely, minimizing intervention times.
Fully Integrated Process Flow
The plant integrates the entire production process in a continuous, automated flow. Raw material is received in pre-storage hoppers, from which variable-rate dosing feeders direct it to each line's steam conditioners. In the conditioners, material reaches the optimal temperature and moisture for compression — typically 70–85°C and 14–17% moisture. The four pellet mills compress material through dies with 4–10 mm configurable hole diameters depending on the final product. Pellets from all four lines converge in a pneumatic transport system leading to a large-capacity counter-flow cooler, followed by vibrating screens and automatic bagging.
Applications and Industrial Sectors
The 10,000 kg/h capacity positions this plant in the top-tier industrial installation segment. In the energy sector, it produces ENplus-certified wood pellets for biomass power plants, district heating networks, and co-generation. In the animal feed industry, it manufactures complete feeds for large poultry, swine, or cattle integrations with species- and stage-specific formulations. It also finds application in the production of pellets from agro-industrial residues — straw, rice husks, olive pomace, sugarcane bagasse — for energy recovery or growing media.
Infrastructure Requirements and Installation
Installing the 10,000 kg/h plant requires an industrial building with a minimum floor area of 1,500 m² and clear height of 8 meters. Installed electrical power must be at least 700 kW at low or medium voltage. The steam boiler must supply 1,600–2,400 kg/h of steam at 4–6 bar. Dust and fines management must be considered in the facility design from the outset to comply with applicable environmental regulations. Meelko provides complete detailed engineering including plant layout, civil works specifications, process flow diagrams, and calculation reports as part of the supply contract.
Raw Material Preparation and Pre-treatment Line
To maximize plant performance, raw material must arrive at the pelletizing system with 12–18% moisture content and particle size below 5 mm. At 10,000 kg/h scale, the pre-treatment line takes on its own industrial dimension: large-capacity rotary dryers, high-output hammer mills, and large-diameter pneumatic transport systems are essential elements in most projects. Meelko offers a complete pre-treatment equipment catalog and can design the full line from raw material reception to finished bagged or bulk product.
Profitability and Return on Investment
At 10,000 kg/h capacity, daily output can exceed 200 tons operating three eight-hour shifts. At market prices of 150–250 USD/ton for wood pellets and production costs of 80–130 USD/ton depending on local context, gross margins per ton allow investment recovery in 3–6 years for well-dimensioned projects with secured markets. Meelko offers business plan consultancy support and can facilitate introductions to international pellet buyers for clients who require it.
Technical Specifications
Applications:
This product is ideal for a wide range of industrial applications, including:
• Material processing
• Industrial production
• Manufacturing operations
• Automation systems
• Construction projects
Warranty and Support
All our products include complete warranty and specialized technical support. Our team is available to help you with any consultation or maintenance need.
General Information
| Product Name | : | Meelko 10 000 kg/h Pellet Plant – Fully Automated Industrial Production Line |
| Price | : | Request Quote |
| Subcategory | : | Plants |
| Category | : | Pellet Mills |
Technical Specifications
| Power | : | 250 kW |
| Capacity | : | 10 ton/hr |
| Weight | : | 10 ton |
| Humidity | : | 20% |
