Linear Belt Conveyor 400mm x 3m
Details:
Linear Belt Conveyor 400mm x 3m for Grains and Agroindustrial Materials - MKBT-400L-3
The MKBT-400L-3 linear belt conveyor with a belt width of four hundred millimeters and a length of three meters is a horizontal transport equipment designed to move grains, cereals and agroindustrial materials at capacities ranging from nine to fourteen tons per hour. This flat belt transport system enables efficient displacement of bulk materials between different processing stations within an agroindustrial plant. Its one point five kilowatt electric motor provides the necessary power to maintain a constant material flow during complete shifts of continuous operation.
Operating Principle and Linear Design
The MKBT-400L-3 belt conveyor operates through a continuous belt of flexible material that travels over support rollers between two drums located at the ends of the conveyor. The drive drum connected to the electric motor through a transmission system propels the belt generating the movement needed to transport material deposited on its surface. The tail drum at the opposite end provides the belt return point and allows the tension adjustment necessary for optimal operation. Intermediate rollers support the weight of the loaded belt and maintain its alignment during operation.

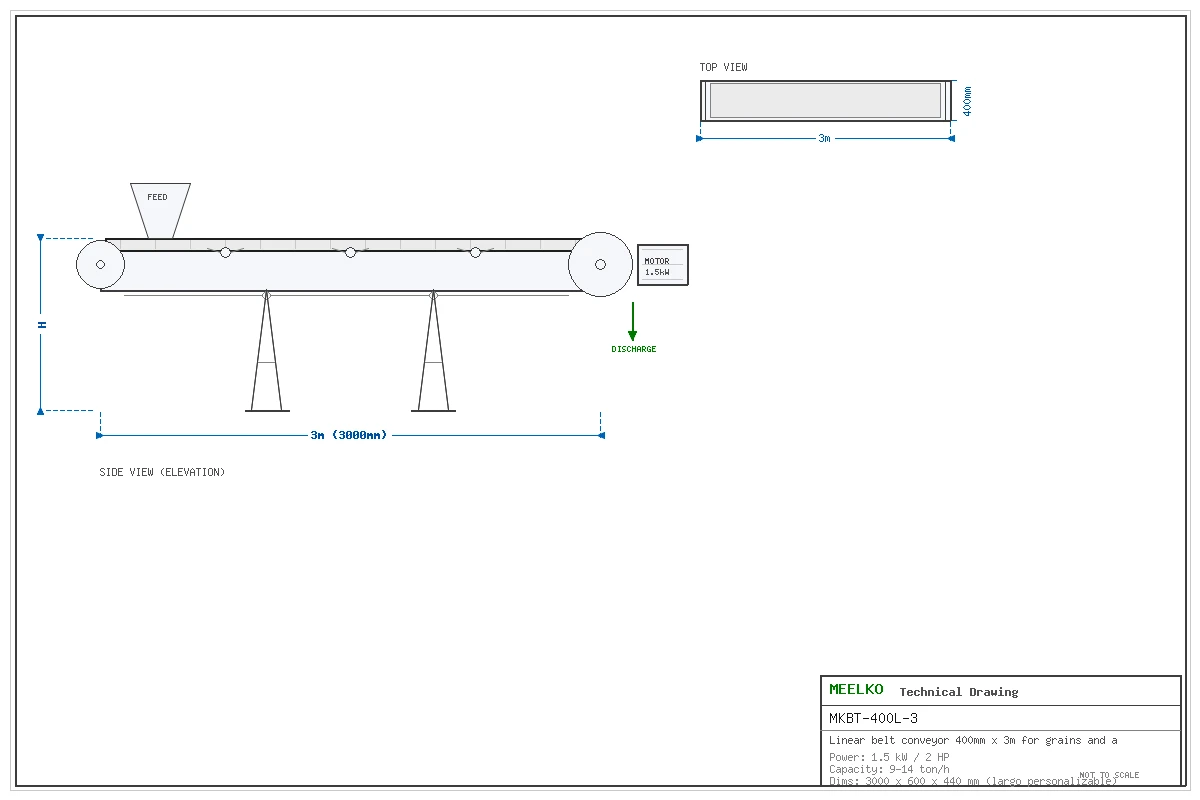

Technical Specifications and Dimensions
With a belt width of four hundred millimeters and a total length of three meters, the MKBT-400L-3 is sized for short range applications where material transfer between adjacent equipment or sequential process feeding is required. The transport capacity of nine to fourteen tons per hour varies according to the density of transported material and belt speed. The one point five kilowatt motor is sized to operate with margin under maximum load conditions, guaranteeing a power reserve that extends the service life of mechanical and electrical system components.
Transported Materials and Applications
The MKBT-400L-3 belt efficiently transports a wide variety of agroindustrial materials. Whole grains such as corn, wheat, sorghum, barley, rice and oats are moved without mechanical damage on the flat belt surface. Processed materials such as flours, brans, ground seeds and balanced animal feed flow uniformly without generating accumulations or lateral spillage. Granulated fertilizers, planting seeds and other agricultural inputs can be transported with equal efficiency. The versatility of this belt allows its integration into animal feed production lines, milling plants, collection centers and cereal processing plants.
Conveyor Structure and Frame
The MKBT-400L-3 frame is manufactured from structural steel with high strength profiles that provide rigidity and stability during loaded operation. Height adjustable support legs allow leveling the conveyor and adjusting discharge height according to installation requirements. Optional side guardrails prevent material spillage at belt edges during transport of lightweight materials or those prone to sliding. The modular structure facilitates equipment transport and installation at the work site without requiring cranes or heavy lifting equipment.
Conveyor Belt and Material Characteristics
The transport belt is manufactured with food grade materials suitable for direct contact with grains and cereals intended for human or animal consumption. The upper belt surface features a texture that provides the necessary friction to prevent material sliding during transport. Internal textile reinforcement layers guarantee the mechanical strength needed to withstand operating loads without permanent deformation. Belt edges are sealed to prevent fraying and extend the service life of the transport element.
Tensioning and Alignment System
The tensioning mechanism located at the tail drum allows adjustment of belt tension to compensate for natural stretching that occurs during continuous operation. Proper tension is fundamental to avoid belt slippage on the drive drum and guarantee efficient traction force transmission. Lateral alignment devices automatically correct belt deviations that could cause irregular edge wear or contact with the frame structure. Periodic maintenance of the tensioning and alignment system is essential to maximize belt service life.
Maintenance and Durability
The MKBT-400L-3 maintenance program includes regular inspection of the belt to detect surface wear, cuts or edge damage. Support and return rollers must be periodically checked to ensure they rotate freely without vibrations or abnormal noises. Drive drum and tail drum bearings require lubrication according to the schedule established by the manufacturer. Belt cleaning through scrapers installed at the return drum prevents accumulation of adhered material that could affect proper belt tracking and reduce transport efficiency.
Technical Specifications
Applications:
This product is ideal for the following industrial applications:
Warranty and Support
All our products include complete warranty and specialized technical support. Our team is available to help you with any consultation or maintenance need.
General Information
| Product Name | : | Linear belt conveyor 400mm x 3m for grains and agroindustrial materials - MKBT-400L-3 |
| Price | : | $1,500.00 |
| Subcategory | : | Linear Belt Conveyors |
| Category | : | Belts |
Technical Specifications
| Capacity | : | 9-14 ton/hr |
| Dimensions | : | 3000 x 600 x 440 mm (largo personalizable) mm |
| Weight | : | 67 kg |
