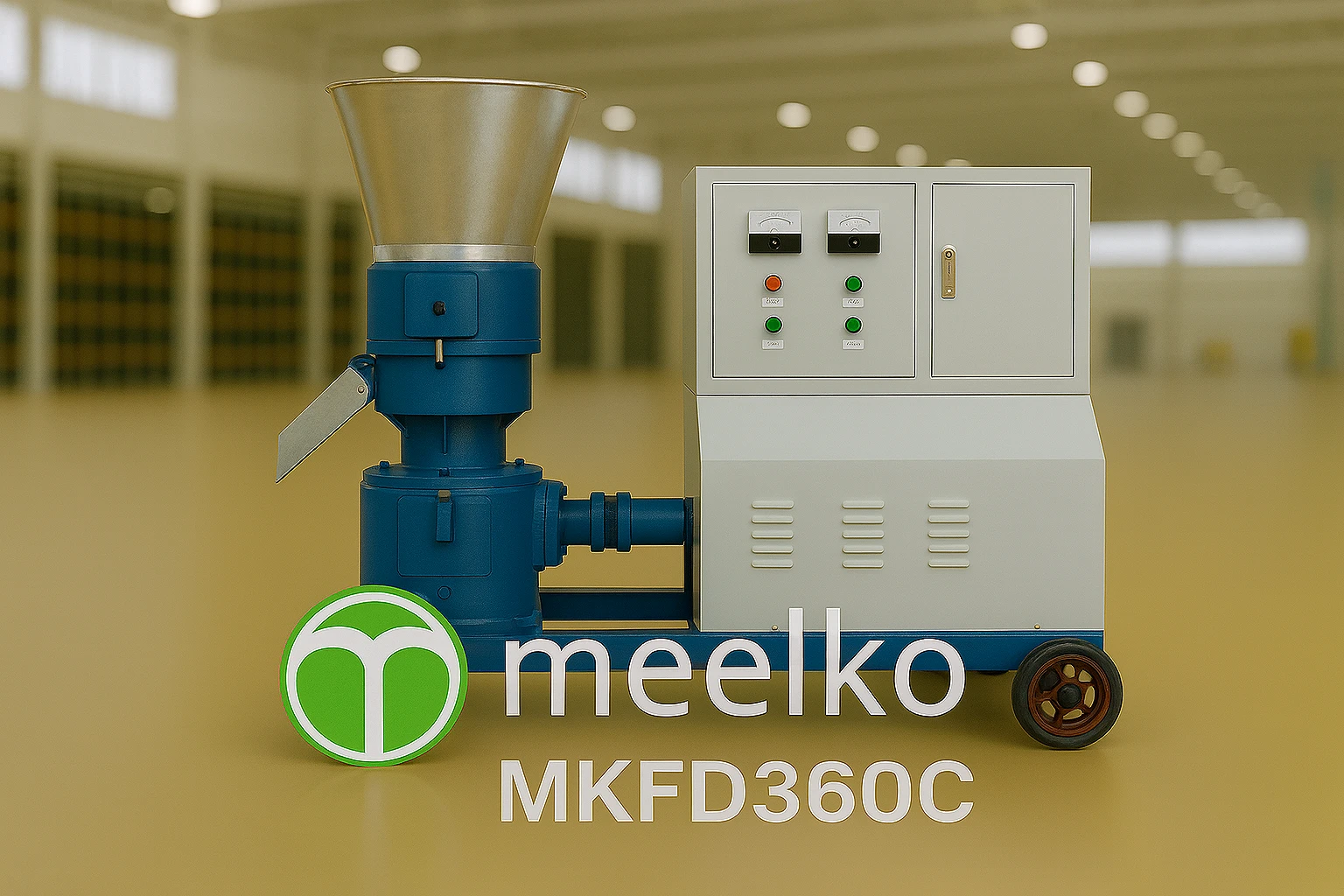

Electric Pellet Mill MKFD360C – 360 mm / 22–30 kW
Details:
Electric Pellet Mill MKFD360C 360 mm with 22–30 kW Motor – Meelko
The Meelko MKFD360C electric pellet mill is a high-capacity machine designed for industrial production of animal feed, wood, biomass, and various organic material pellets. Equipped with a 360 mm diameter flat die and a 22 to 30 kW electric motor, this pelletizer delivers superior performance for agro-industrial operations that need to produce large volumes of pellets with consistent quality, uniform dimensions, and high compaction density throughout extended production runs.
Flat Die Compression System
The 360 mm flat die of the MKFD360C provides an ample compression surface that maximizes production capacity per operating cycle. The mechanism works through pressure rollers that compress raw material against the die holes, forcing material through the perforations to form compact cylindrical pellets. The friction generated during compaction raises the material temperature, activating natural binders such as lignin in wood or proteins in feed ingredients, resulting in pellets with excellent cohesion without the need for external additives in most formulations processed by this machine.
22 to 30 kW Electric Motor
The MKFD360C offers power flexibility with motor options ranging from 22 to 30 kW, allowing operators to select the most suitable configuration according to the type of material being processed and the required production capacity. The higher power motor is recommended for high-density materials or when maximizing production output is the priority, while the 22 kW motor proves sufficient for lighter materials or moderate production volumes. The gear and belt transmission system distributes power efficiently to the compression rollers, minimizing energy losses throughout the drive train.
Compatible Raw Materials
The versatility of the MKFD360C allows processing a wide range of materials including softwood and hardwood sawdust, planing shavings, shredded pruning residues, dry grass, alfalfa, cattle feed mixtures for bovine, swine, and poultry species, cereal flours, milling by-products, agro-industrial residues, and other lignocellulosic biomass types. The optimal moisture content for processing should be maintained between 10 and 18 percent depending on the material, ensuring proper pellet formation and cohesion in the finished product.
Industrial Construction
The MKFD360C structure is manufactured from high-strength steel with critical components heat-treated to guarantee durability in continuous industrial operation. The die and rollers are manufactured from special alloy steel with optimized hardness to resist abrasive wear from different material types over thousands of operating hours. The sealed housing protects internal components against dust and moisture ingress, while side access doors facilitate maintenance tasks, cleaning, and die changes without requiring complete machine disassembly.
Industrial Applications
In the animal feed sector, the MKFD360C produces balanced pellets with the appropriate density and size for each species, improving digestibility and reducing feed waste significantly. In the biomass and renewable energy sector, the machine manufactures wood pellets for heating stoves and boilers, as well as biomass pellets for industrial thermal energy generation. The production capacity of the MKFD360C positions it as an ideal solution for medium and large-scale operations requiring reliable equipment with low operational cost per ton of pellets produced.
Maintenance and Spare Parts
The MKFD360C maintenance program includes periodic bearing lubrication, die and roller condition inspection, compression pressure adjustment, transmission system verification, and electrical system review. Wear components are interchangeable and available as original Meelko spare parts through the authorized distribution network. The machine is designed to facilitate access to all maintenance points, reducing service times and minimizing production downtime. Meelko offers complete technical support and advisory services for selecting the most appropriate die configuration according to the specific pellet type each client needs to produce in their operation.
Energy Efficiency and Production Economics
The MKFD360C achieves excellent energy efficiency ratios thanks to its optimized compression geometry and efficient power transmission system. The energy consumption per ton of pellets produced is among the lowest in its capacity class, making it an economically attractive option for producers focused on maintaining competitive production costs. The robust construction and high-quality components ensure minimal unplanned downtime, further contributing to favorable production economics over the complete equipment lifecycle from installation through years of continuous industrial service.
Technical Specifications
Applications:
This product is ideal for a wide range of industrial applications, including:
• Material processing
• Industrial production
• Manufacturing operations
• Automation systems
• Construction projects
Warranty and Support
All our products include complete warranty and specialized technical support. Our team is available to help you with any consultation or maintenance need.
General Information
| Product Name | : | Electric Pellet Mill MKFD360C – 360 mm / 22–30 kW |
| Price | : | $9,393.00 |
| Subcategory | : | Electric Pellet Machines |
| Category | : | Pellet Mills |
Technical Specifications
| Power | : | 22 kW |
| Capacity | : | 680-820 kg/hr |
| Dimensions | : | 1340*580*1060 mm |
| Weight | : | 510 kg |
| Humidity | : | 17% |
