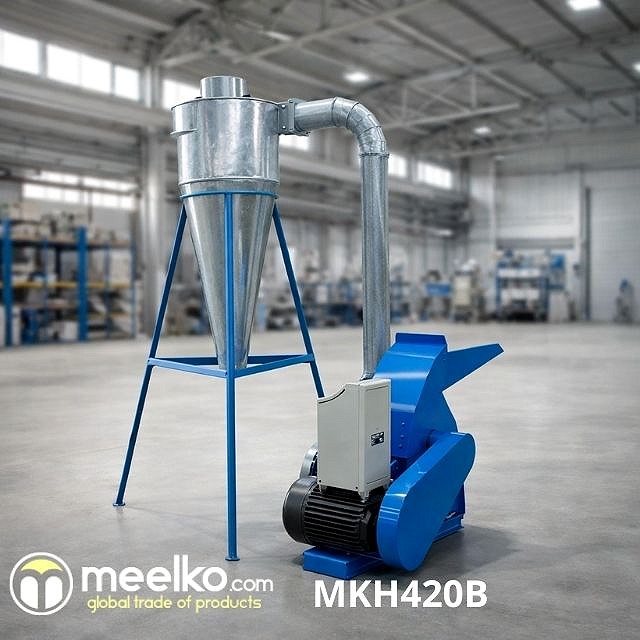

Electric hammer mill for biomass grinding up to 500 kg per hour - MKH420B
Electric hammer biomass mill MKH420B with 7.5 kW motor and up to 500 kg/h capacity, ideal for crushing dry biomass into fine particles for pelletizing, briquetting or thermal applications.
Details:
Electric Hammer Biomass Mill up to 500 kg/h – MKH420B
The MKH420B Electric Hammer Biomass Mill by MEELKO is an industrial grinding machine engineered to crush, pulverize and reduce the size of dry biomass materials with a throughput of up to 500 kg per hour, making it ideal for biomass processing plants, community mills, renewable energy projects and agricultural operations requiring reliable and continuous size reduction.
Equipped with high-speed rotating hammers, this mill breaks down fibrous and bulky organic materials like wood chips, crop residues, stalks and dry leaves into fine particles suitable for downstream uses such as pelletizing, briquetting, composting or as feedstock for biomass boiler systems.
The processed material is removed by an integrated centrifugal fan extraction system, promoting continuous discharge while helping minimize dust dispersion in the work area — a key advantage for operational safety and cleanliness.
Performance and Technical Features
Key specifications include:
- Milling capacity: up to ~500 kg/h depending on material and moisture.
- Electric power: 7.5 kW motor for robust performance.
- Compact dimensions: approx. 1200 × 1000 × 1200 mm, easy to integrate in production lines.
- Operating weight: approx. 320–360 kg for stability.
- Recommended moisture: ≤ 30% for optimal crushing efficiency.
Versatile Biomass Processing
This electric hammer mill is ideal for:
- Dry agricultural residues such as straw, stalks and leaves.
- Wood and wood chips used in energy and material recycling.
- Pre-conditioning biomass for pellet or briquette production.
- Feedstock preparation for biomass boilers and thermal conversion equipment.
The design ensures continuous operation with accessible maintenance, boosting productivity and long-term reliability.
Technical Specifications
Applications:
This product is ideal for a wide range of industrial applications, including:
• Material processing
• Industrial production
• Manufacturing operations
• Automation systems
• Construction projects
Warranty and Support
All our products include complete warranty and specialized technical support. Our team is available to help you with any consultation or maintenance need.
General Information
| Product Name | : | Electric hammer mill for biomass grinding up to 500 kg per hour - MKH420B |
| Price | : | $3,302.00 |
| Subcategory | : | Meelko Industrial Hammer Mills – Standard Line for General Use |
| Category | : | Mills |
Technical Specifications
| Power | : | 7.5 kW |
| Capacity | : | 300-400 kg/hr |
| Dimensions | : | 1200*1000*1200 mm |
| Weight | : | 320 kg |
| Humidity | : | 30.2% |
